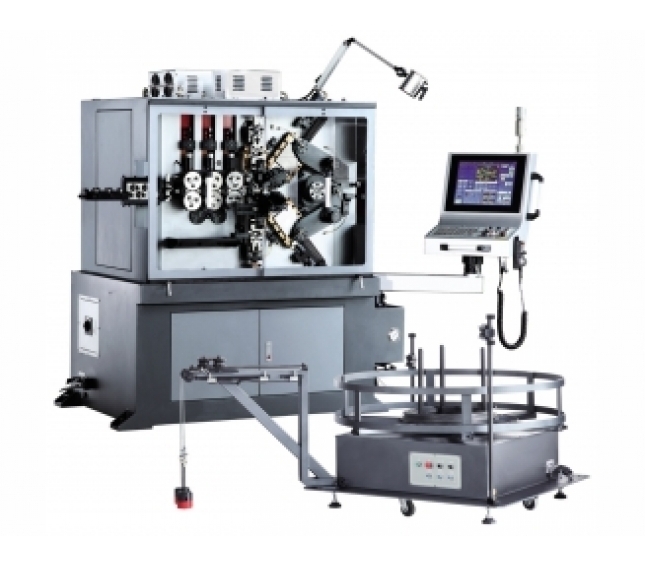

GW-950 (φ2.0~5.0mm)
● 9 Axis:
Feed Roller x1
Coiling slide for spring OD adjustment x2
Coiling slide for spring tension adjustment x2
Cutter x1
Wedge pitch x1
Push pitch x1
Arbor x1
● Windows system controller
● with spring 3D simulation function
● Touch Screen with USB interface
● Auto programming for various types of springs
● Program with chart of OD, Pitch, Turns, Free length and Closed-end
● Support rotary cut & arborless cut
|
Model |
GW-950 |
|
Axis |
9 axis: Feed Roller x1, Coiling slide for spring OD adjustment x2, Coiling slide for spring tension adjustment x2, Cutter x1, Wedge pitch x1, Push pitch x1, Arbor x1 |
|
Wire dia. |
Ø2.0-5.0 mm |
|
Coiling direction |
Left / Right |
|
Max. spring O.D. |
Ø110 mm |
|
Feed speed |
127 m / min |
|
Production Speed |
25~150 pcs / min |
|
Rotating/Twisting Cutoff |
Yes |
|
Machine dimension |
224x166x200 cm |
|
Machine Weight |
2.9 T |
The specifications are subject to change without notice.
