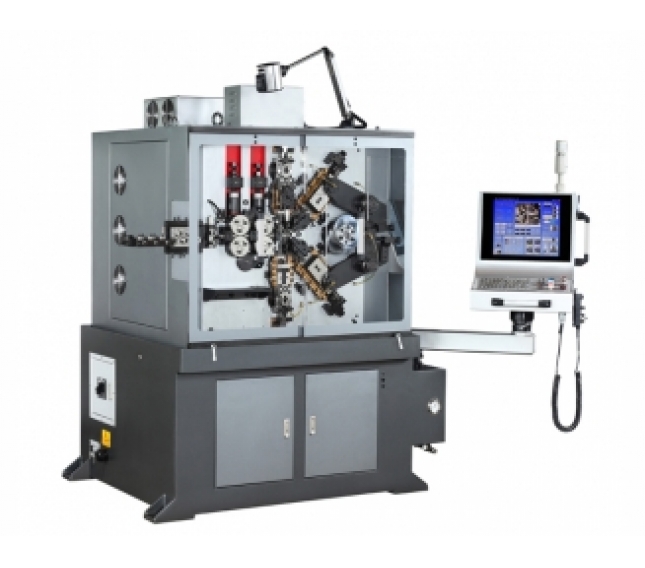

GHA-630 (φ1.2~3.0mm)
● 6 Axis: Feed Roller, Diameter, Cutter, Wedge pitch, Push pitch, Arbor
● Windows system
● Touch Screen with USB interface

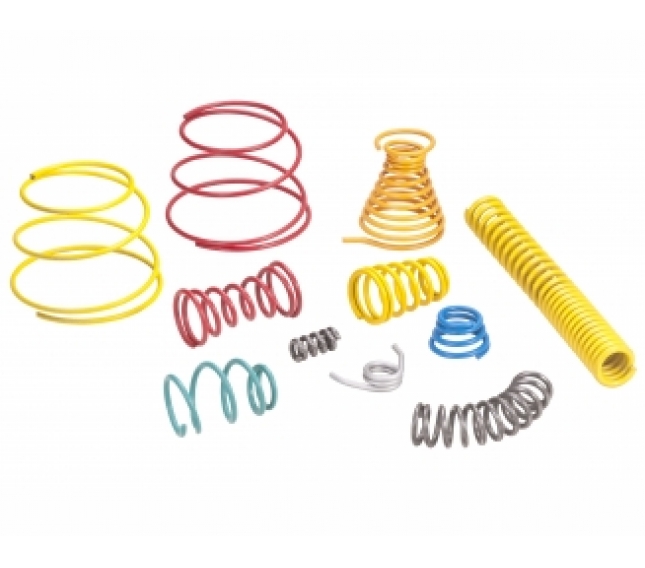

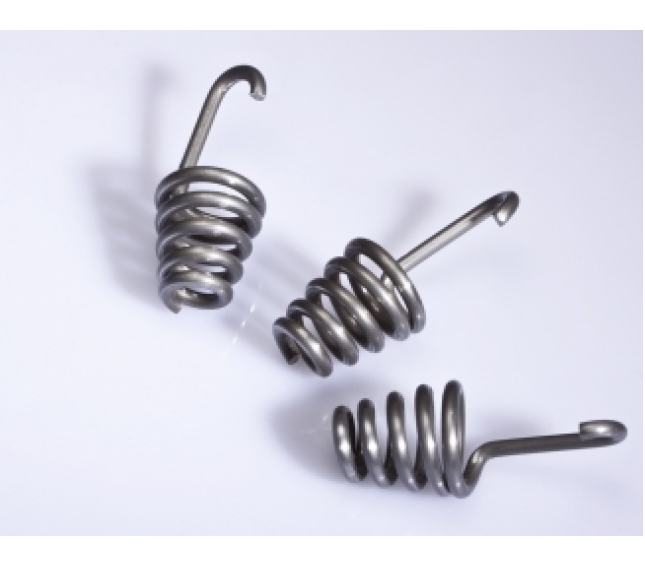

● Auto programming for various types of springs
● Program with chart of OD, Pitch, Turns, Free length and Closed-end
● Support rotary cut & arborless cut
|
Model |
GHA-630 |
|
Axes |
6 (can be upgraded into Windows system controller, optional) |
|
Wire dia. |
Ø1.2-3.0 mm |
|
Coiling direction |
Left / Right |
|
Max. spring O.D. |
Ø60 mm |
|
Feed speed |
93 m / min |
|
Power |
220V; 3P; 50/60Hz |
|
Rotating/Twisting Cutoff |
Yes |
|
Machine dimension |
205x166x200 cm |
|
Machine Weight |
2.3 T |
The specifications are subject to change without notice.
