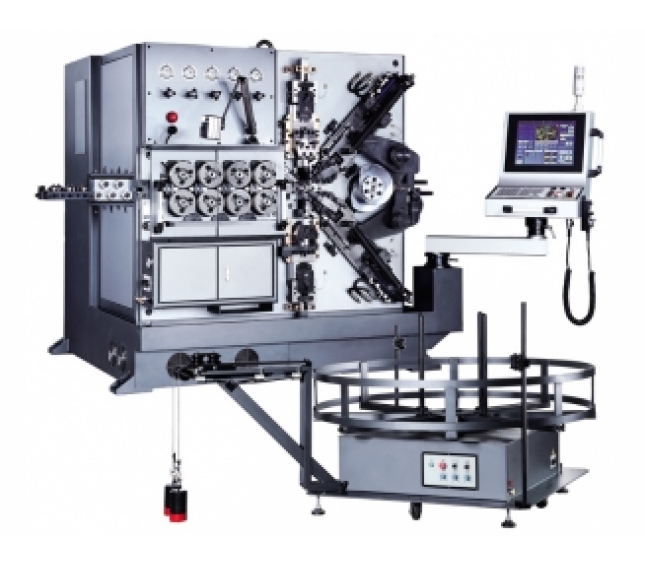

GHA-680 (φ4.0~8.0mm)
● 6 Axis: Feed Roller, Diameter, Cutter, Wedge pitch, Push pitch, Arbor
● Windows system
● Touch Screen with USB interface
● Auto programming for various types of springs
● Program with chart of OD, Pitch, Turns, Free length and Closed-end
● Support rotary cut & arborless cut
|
Model |
GHA-680 |
|
Axes |
6 axis (can be upgrade into Windows system controller, optional) |
|
Wire dia. |
Ø4.0-8.0mm |
|
Coiling direction |
Left / Right |
|
Max. spring O.D. |
Ø160mm |
|
Feed speed |
100 m / min |
|
Production Speed |
20~100 pcs / min |
|
Rotating/Twisting Cutoff |
Yes |
|
Machine dimension |
328x233x206 cm |
|
Machine Weight |
5.8 T |
The specifications are subject to change without notice.
