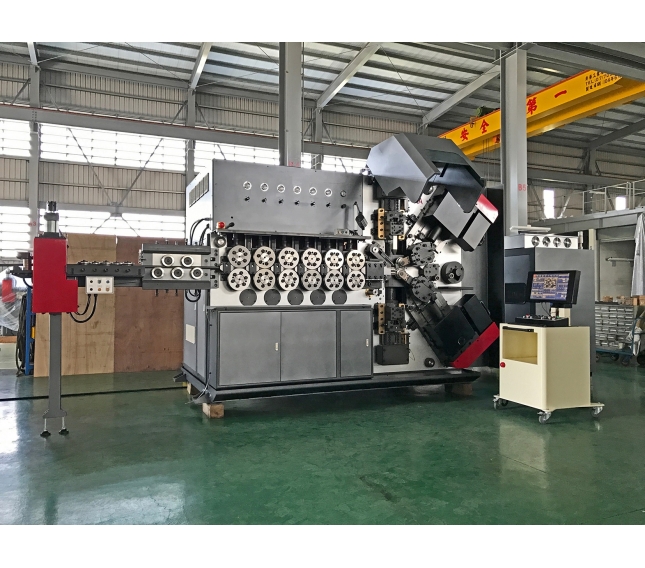

GW-6250 (φ13.0~25.0mm)

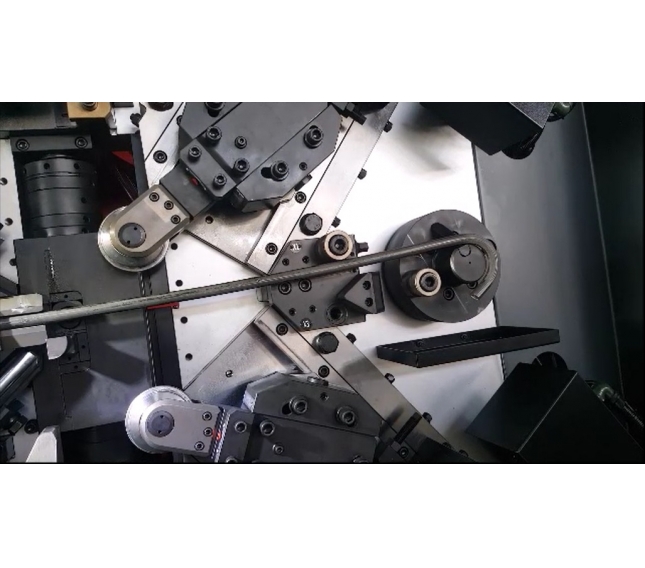

● 6 Axis: Feed Roller, Top coiling slide, Bottom coiling slide, Cutter, Wedge pitch, Push pitch
● Windows system controller
● With spring 3D simulation function
● Touch Screen with USB interface
● Auto programming for various types of springs
● Program with chart of OD, Pitch, Turns, Free length and Closed-end
|
Model |
GW-6250 |
|
Axes |
6 axis (Wire feed、Cutter、Wedge、Push pitch、Top coiling slide、Bottom coiling slide) |
|
Wire dia. |
Ø13.0-25.0 mm |
|
Coiling direction |
Left / Right |
|
Max. spring O.D. |
Ø300 mm |
|
Feed speed |
62.5 m / min |
|
Production Speed |
5~20 pcs / min |
|
Machine dimension |
580x 210x300 cm (L x W x H) |
|
Machine Weight |
Total amount is around 30T (Machine is around 23T) |
The specifications are subject to change without notice.
