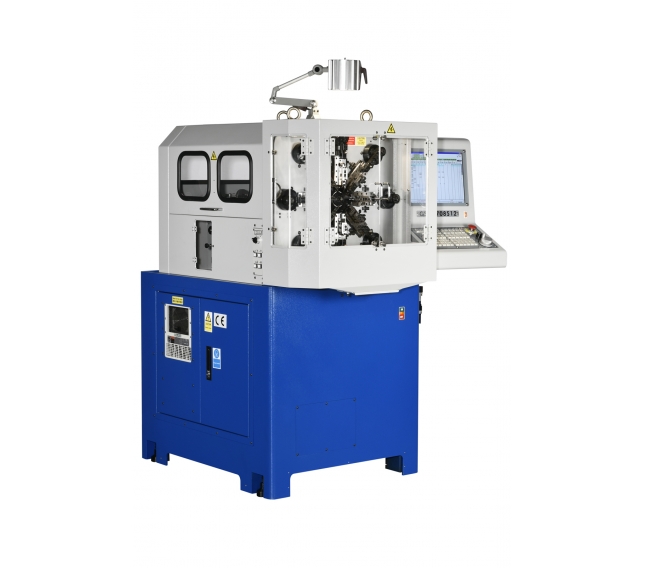

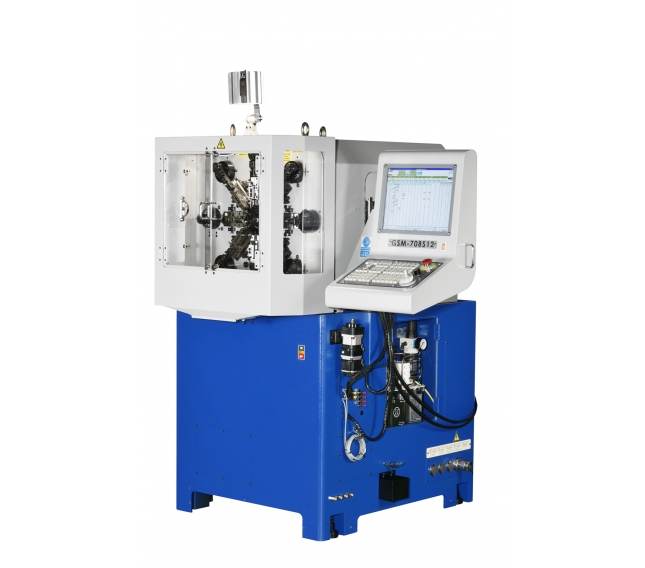

GSM-708S12 (φ0.13~0.8mm)
● USB slot
● With teaching mode / program editing mode
● Programmable pause time and continuous operation time
● Step speed can be set
● Bending angle setting can be controlled via slide, shaft and servo curl
● Available through servo coil control loops
● Optional servo curl...etc.
|
Model |
GSM-708S12 |
|
|
Working Range |
Basic Wire Diameter |
0.13-0.8 mm |
|
Rotary Wire Diameter |
0.3-0.8 mm |
|
|
Strip Size |
0.2x0.4 mm |
|
|
Working Ability |
O.D. Max |
20 mm |
|
Leg Length Max |
20 mm |
|
|
Forming(1-8)-Axis |
Range of Input |
1-8000(180 degrees, absolute position) |
|
Max. Rotation Rate |
90 rpm |
|
|
Feeding Axis |
Range of Input |
0.01-99999.99 |
|
Max. Feeding Speed |
90 m/min |
|
|
Rotary Quill Axis |
Range of Input |
+/-18000 (180 degrees for each direction) |
|
Rotary Wire Axis |
Range of Input |
+/-16000 (160 degrees for each direction) |
|
Max. Rotation Rate |
60 rpm |
|
|
Servo Spinner Axis |
Range of Input |
+/-36000 (360 degrees for each direction) |
|
Control System |
Program Storage |
5000 programs |
|
Number of Axes |
(Default 11；Max 12) |
|
|
Power Supply |
Power Supply |
200/220V 3ψ 50/60Hz 20A |
|
Motor Capacity |
Wire Forming: 0.4KW*8 Wire Feeding: 1.0KW*1 Rotary Quill: 0.4Kw*1 Rotary Wipe: 1.2KW*1 Spinner(Optional): 0.2KW |
|
|
Machine Scale |
Dimension |
130(W) x 115(L) x 170(H) cm |
|
Weight |
690 kg |
|
The specifications are subject to change without notice.
