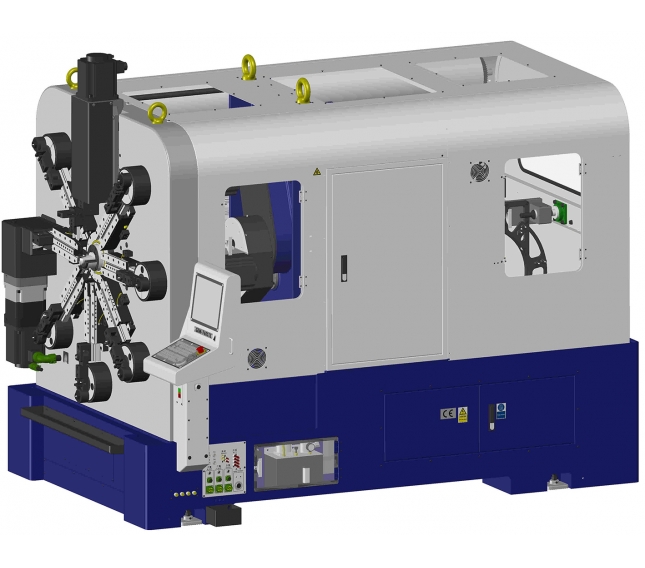

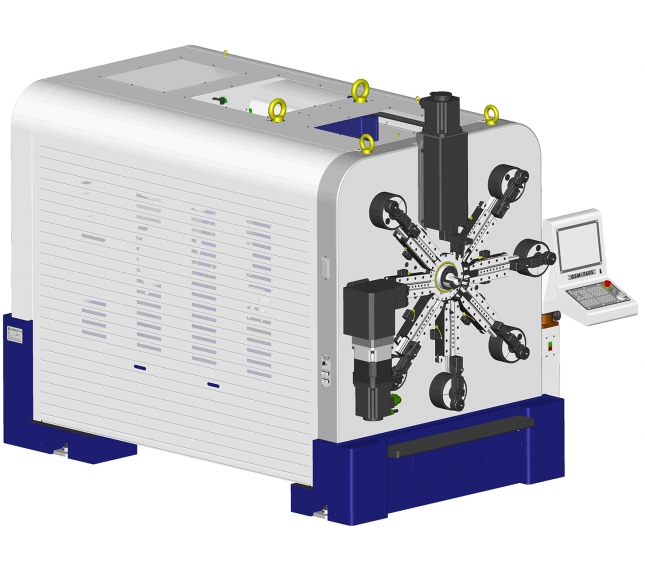

GSM-760S13 (φ2.5~6.0mm)
●TEACH edit
●Priority control
●Programmable pause timing/duration
●Programmable jogging speed
●Angle setting available for Slide, Quill, Rotary Wire and Servo Spinner
●Turns setting available for Servo Spinner
●Optional servo spinner, hook station, etc.
|
Model |
GSM-760S13 |
|
|
Wire capacity |
Steel wire: 2.5 - 6.0 mm |
|
|
Max. Leg length |
110 mm |
|
|
Max. OD |
100 mm |
|
|
Slide axis |
R2AA18550 |
5.5 kw- 1 axis |
| R2AA18750 | 7.5 kw- 7 axes | |
|
Forming (E) axis |
R2AA13180 |
1.8 kw- 1 axis |
| Feed axis |
R2AA2211K |
11 kw- 1 axis |
|
Max. speed |
(90 M/min) |
|
|
Quill axis |
P60B08120 |
1.2 kw- 1 axis |
|
Rotary wire axis |
R2AA18750 |
7.5 kw- 1 axis |
|
Computer |
Axis Number |
Default 12, Max. 14 |
|
Slide Stroke |
126mm | |
|
Power voltage |
Power supply |
220V, 3P, 50/60Hz |
|
Machine dimension |
2300(W)x3300(L)x2500(H) mm |
|
|
Machine Weight |
6000 kgs |
|
The specifications are subject to change without notice.
