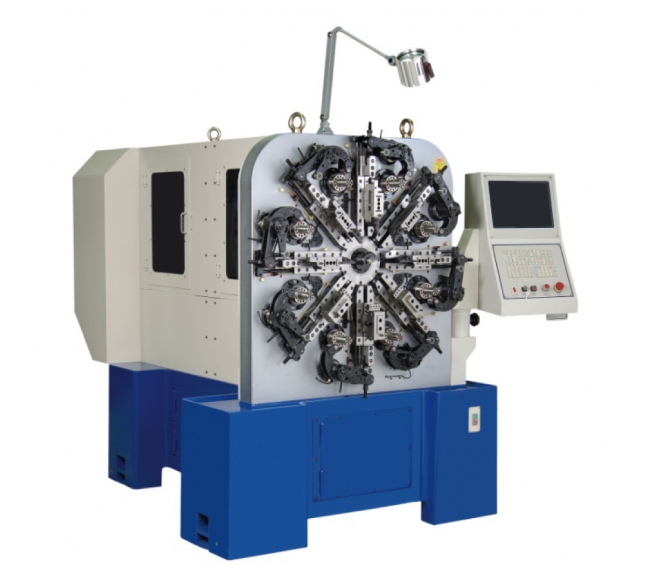

GNC-635RW (φ2.0~4.0mm)
●File index
●On screen HELP manual
●USB port
●Servo control MS mode and CNC mode
●TEACH edit
●Priority control
●Programmable pause timing/duration
●Programmable jogging speed
●Angle setting available for Cam, Quill, Rotary Wire and Servo Spinner
●Turns setting available for Servo Spinner
●Optional servo spinner, hook station, etc.
|
Model |
GNC-635RW |
|
|
Material |
Wire dia. |
0.079 - 0.16" (2.0 - 4.0 mm) |
|
Slide stroke |
|
3.15" (80 mm) |
|
Max. Leg length |
|
2.36" (60 mm) |
|
Max. OD |
|
2.76" (70 mm) |
|
Cam axis |
Min. increment |
1 (4000/cycle) |
|
|
Max. speed |
70 RPM |
|
|
Motor rated output |
5.5 kw |
|
Feed axis |
Min. increment |
0.01 |
|
|
Max. feed /step |
999999 |
|
|
Max. speed |
60 M/min |
|
|
Motor rated output |
5.5 kw |
|
Quill axis |
Min. increment |
1 (4000/cycle) |
|
|
Motor rated output |
1.0 kw |
|
Rotary wire axis |
Min. increment |
0.1 d |
|
|
Max. rotation |
360 d |
|
|
Max. speed |
60 RPM |
|
|
Motor rated output |
5.5 kw |
|
Servo Spinner axis (S) (optional) |
Min. increment |
1 (3200/cycle) |
|
|
Max speed |
375 RPM |
|
|
Motor rated output |
1.0 kw |
|
Computer |
|
586 Industrial Computer |
|
Memory |
Memory files |
000~099 |
|
|
Steps/file |
N000~N399 |
|
Dimension |
114" x 79 x 78" (2900 x 2000 x 1970 mm) |
|
|
Weight |
5940 lbs (2700 kgs) |
|
The specifications are subject to change without notice.
