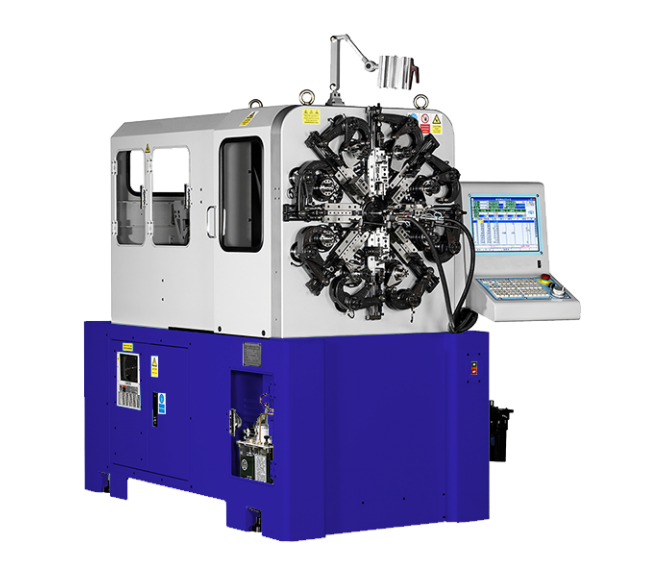

GSM-720S (φ0.2~2.3mm)
●USB port
●Servo control MS mode and CNC mode
●TEACH edit
●Programmable pause timing/duration
●Programmable jogging speed
●Angle setting available for Cam, Quill, Rotary Wire and Servo Spinner
●Turns setting available for Servo Spinner
●Optional servo spinner, hook station, etc.
|
Model |
GSM-720S |
|
|
Material |
Basic wire dia. |
0.2 - 2.3 mm |
|
Max. Leg length |
|
60 mm |
|
Max. OD |
|
40 mm |
|
Cam axis |
Min. increment |
1 (4000/cycle) |
|
|
Max. speed |
90 RPM |
|
Feed axis |
Min. increment |
0.01 mm |
|
|
Max. feed /step |
99999.99 mm |
|
|
Max. speed |
Memory files |
|
Quill axis |
Min. increment |
1 (4000/cycle) |
|
Rotary Wire axis |
Min. increment |
0.1 d |
|
|
Max. Rotation |
360 d |
|
|
Max. speed |
60 RPM |
|
Computer |
Axis Number |
4 axes (Maximum upgrade to 6 axes) |
|
Memory |
Memory files |
5000 Programs |
|
Dimension |
2100 x 1500 x 1800 mm |
|
|
Weight |
1653 kgs |
|
The specifications are subject to change without notice.
