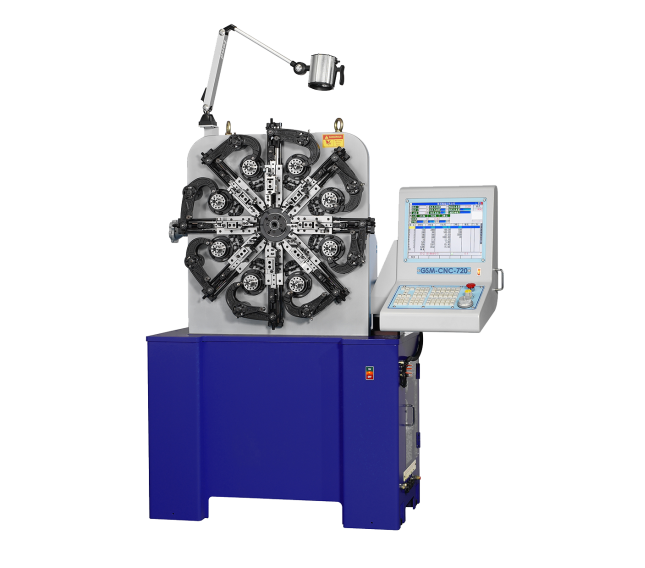

GSM-720R (φ0.2~2.3mm)
●USB port
●Servo control MS mode and CNC mode
●TEACH edit
●Priority control
●Programmable pause timing/duration
●Programmable jogging speed
●Angle setting available for Cam, Quill and Servo Spinner
●Turns setting available for Servo Spinner
●Optional servo spinner, hook station, etc.
|
Model |
GSM-720R |
|
|
Material |
Wire dia. |
0.2 - 2.3mm |
|
|
Strip Size |
1.0 x 12.0 mm |
|
Max. Leg length |
|
40 mm |
|
Max. OD |
|
60 mm |
|
Cam axis |
Min. increment |
1 (4000/cycle) |
|
|
Max. speed |
90 RPM |
|
Feed axis |
Min. increment |
0.01 |
|
|
Max. feed /step |
99999.99 |
|
|
Max. speed |
90 M/min |
|
Computer |
Memory files |
5000 programs |
|
|
Memory time |
180 Days |
|
Power |
Power supply |
220V, 3P, 50/60Hz, 4.5KVA |
|
|
Motor capacity |
3.5KW x 2, 1.0KW x 1 |
|
Dimension |
850 x 1500 x 1750 mm |
|
|
Weight |
850kgs |
|
The specifications are subject to change without notice.
