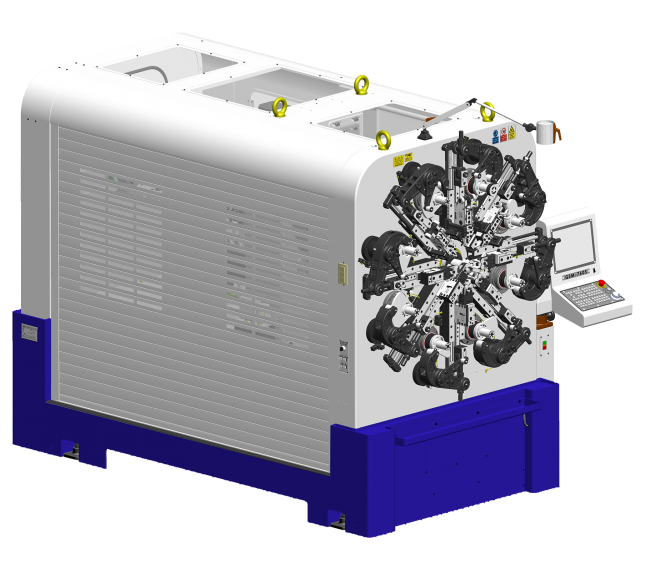

GSM-760S (φ2.5~6.0mm)
● File index
● On screen HELP manual
● USB port
● Servo control MS mode and CNC mode
● TEACH edit
● Priority control
● Programmable pause timing/duration
● Programmable jogging speed
● Angle setting available for Cam, Quill, Rotary Wire and Servo Spinner
● Turns setting available for Servo Spinner
●Optional servo spinner, hook station, etc.
|
Model |
GSM-760S |
|
|
Material |
Wire dia. |
Steel wire: 2.5 - 6.0 mm |
|
Max. Leg length |
|
100 mm |
|
Max. OD |
|
120 mm |
|
Cam axis |
P60B2211K |
11 kw- 1 axis |
|
|
|
|
|
Feed axis |
P60B2211K |
11 kw- 1 axis |
|
|
Max. speed |
90 M/min |
|
|
|
|
|
Quill axis |
P60B08120 |
1.2 kw- 1 axis |
|
Rotary Wire axis |
Q2AA18750 |
7.5 kw- 1 axis |
|
Spinner axis (optional) |
R2AA13180 |
1.8 kw |
|
Power voltage |
|
220V, 3P, 50/60Hz |
|
Computer |
Axis Number |
Defult 4, Max. 6 |
|
Slide Stroke |
110mm |
|
|
Dimension |
2200 x 3300 x 2300 mm |
|
|
Weight |
6400 kgs |
|
The specifications are subject to change without notice.
