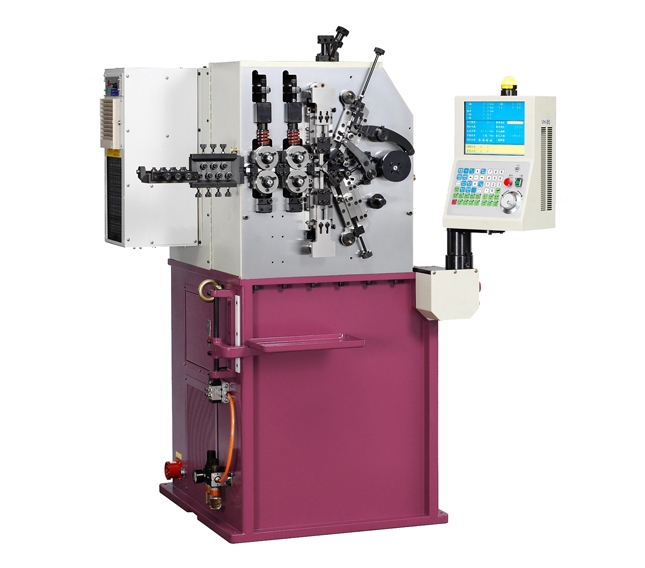

GMF-16E (φ0.7~1.8mm)
● 5 axes high speed spring coiler (Feed Roller, O.D., Wedge pitch, Push pich, Cutter)
● Servo control MS mode
● Auto edit program for springs
● Long wire feed at fixed cam position
● TEACH / EDIT
● Repeat function
● TEST function
● Optional spring gauge, torsion tools, etc.
|
Model |
GMF-16E |
|||||
|
Wire Dia. |
0.7-1.8 mm 0.028-0.071 in |
|||||
|
Max. O.D. |
40 mm 1.575 in |
|||||
|
Display |
Chinese And English |
|||||
|
Max. Production Rate |
500 PCS/MIN |
|||||
|
Motor |
Y Axis 3000W |
C Axis 1000W |
P Axis 1000W |
D Axis 750W |
P1 Axis 400W |
|
|
Min. Value |
0.01 mm |
0.01° |
0.01° |
0.01° |
0.01° |
|
|
Max. Value |
9999.99mm |
360.00° |
360.00° |
360.00° |
150.00° |
|
|
Weights |
Machine 690 kg 1521 lbs |
Wooden Case 880 kg 1936 lbs |
||||
|
Dimensions |
Machine 125 × 96 × 156 cm 50 × 38 × 62 in |
Wooden Case 152 × 133 × 182 cm 60 × 53 × 72 in |
||||
|
Power |
3PH 220V 60HZ Customer Specified Available |
|||||
The specifications are subject to change without notice.
