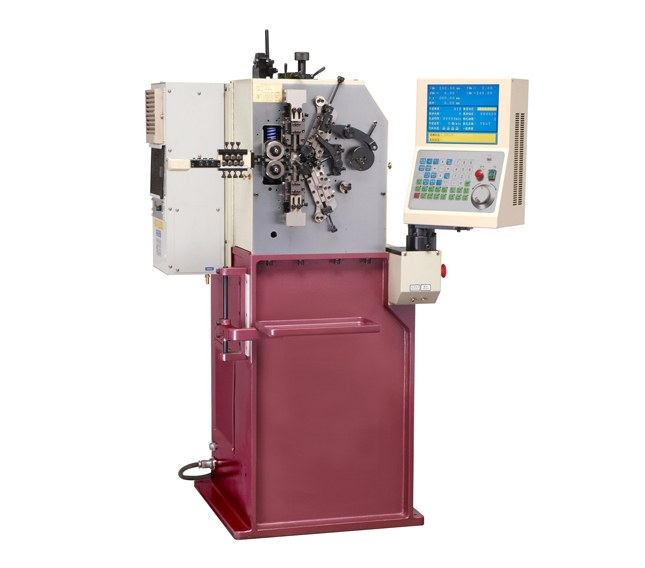

GMF-8E (φ0.1~0.8mm)
● 5 axes high speed spring coiler (Feed Roller, O.D., Wedge pitch, Push pich, Cutter)
● Servo control MS mode
● Auto edit program for springs
● Long wire feed at fixed cam position
● TEACH / EDIT
● Repeat function
● TEST function
● Optional spring gauge, torsion tools, etc.
|
Model |
GMF-8E |
|||||||
|
Wire Dia. |
0.13-0.8 mm 0.005-0.031 in |
|||||||
|
Max. O.D. |
20 mm 0.787 in |
|||||||
|
Display |
Chinese And English |
|||||||
|
Max. Production Rate |
500 PCS/MIN |
|||||||
|
Motor |
Y Axis 750W |
C Axis 750W |
P Axis 750W |
D Axis 400W |
P1 Axis 400W |
|||
|
Max. RPM |
1000 RPM |
800 RPM |
800 RPM |
600 RPM |
600 RPM |
|||
|
Min. Value |
0.01mm |
0.01° |
0.01° |
0.01° |
0.01° |
|||
|
Max. Value |
9999.99mm |
360.00° |
360.00° |
360.00° |
75.00° |
|||
|
Weights |
Machine 385 kg |
Machine 847 lbs |
Wooden Case 500 kg |
Wooden Case 1100 lbs |
||||
|
Dimensions |
73 × 95 × 140 cm 29 × 38 × 55 in |
118 × 118 × 167 cm 47 × 47 × 66 in |
||||||
|
Power |
3PH 220V 60HZ Customer Specified Available |
|||||||
The specifications are subject to change without notice.
