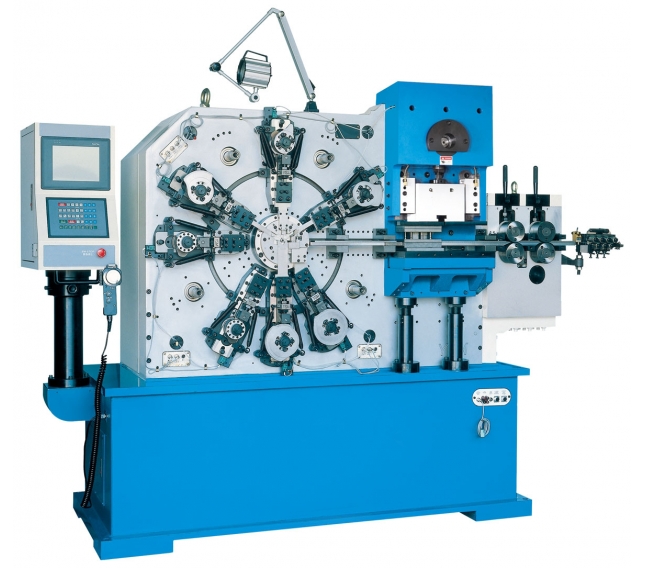

GNC-38T
● Ideal for wire and strip
● Flexible slide position
● Fast production rate
● Precise and stable
● Continuos feeding, bending and stamping
● Auto lubrication
● Safety detection for material disconnection and jam
● Rear cam unit
|
Model |
|
GNC-38T |
|
Wire Capacity |
|
Ø 1.5-5.0 mm |
|
Strip Capacity |
|
0.8-2.0x50 mm |
|
Hardness of Wire (Carbon) |
|
80C |
|
Number of axis |
|
3 |
|
Max. Feed length |
|
Unlimited |
|
Max. Production rate |
|
150 RPM |
|
Slide check sensor |
|
Optional |
|
Punching Pressure |
|
30T |
|
Motor capacity |
Press |
5.5 kw |
|
Cam |
5.5 kw |
|
|
Feed |
1.5 kw |
|
|
Dimension |
|
300x90x190 cm |
|
Weight |
|
4300 kgs |
The specifications are subject to change without notice.
