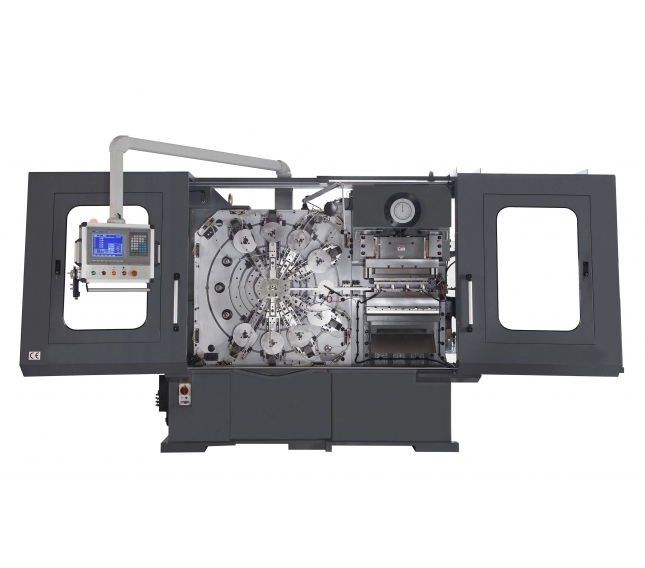

GNC-39T
● Ideal for wire and strip
● Flexible slide position
● Fast production rate
● Precise and stable
● Continuos feeding, bending and stamping
● Auto lubrication
● Safety detection for material disconnection and jam
● Rear cam unit
|
Model |
GNC-39T |
|
|
Capacity |
Wire Diameter |
1.5-6.5 mm |
|
Max. Width of Strip |
60 mm |
|
|
Thickness of Strip |
0.8-3.0 mm |
|
|
Hardness of Strip |
80 (carbon) |
|
|
Length of Feeding |
Unlimited |
|
|
Max. Forming Speed |
150 ppm |
|
|
Tonnage |
Press Capacity |
40 Tons |
|
Slide Capacity |
8 Tons |
|
|
Stoke |
Press Stroke |
40 mm |
|
Slide Stroke |
60 mm |
|
|
Motor Rating |
Feeding |
1.3HP (1KW) |
|
Press |
15HP (12KW) |
|
|
Forming Cam |
15HP (12KW) |
|
|
Ejection Axis (optional) |
1.3HP (1KW) |
|
|
Rotation Axis (optional) |
0.5HP (0.4KW) |
|
|
Machine |
Machine size (LxBxH) |
3500x1800x2350 mm |
|
Weight |
6800 kgs |
|
|
Optional Part |
Safety Guard |
|
The specifications are subject to change without notice.
