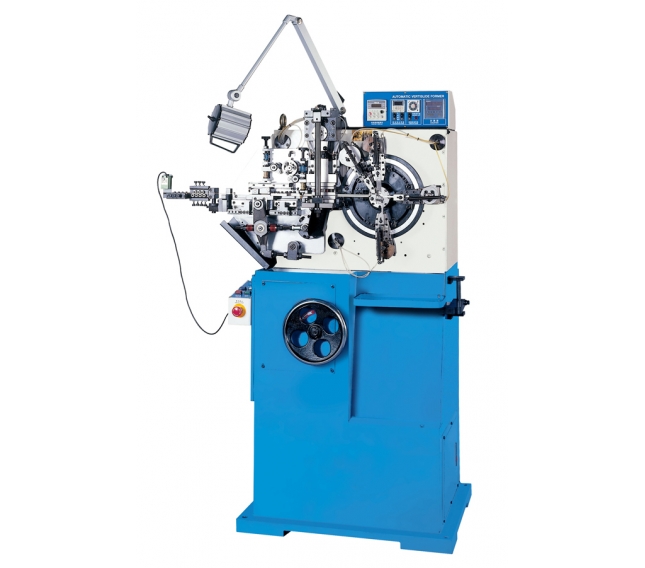

GSM-10T

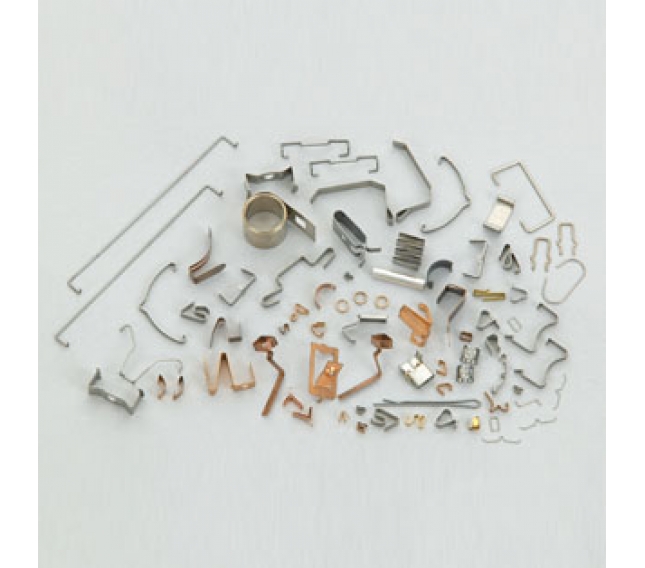

● Ideal for wire and strip
● Flexible slide position
● Fast production rate
● Precise and stable
● Continuos feeding, bending and stamping
● Auto lubrication
● Safety detection for material disconnection and jam
● Rear cam unit
|
Model |
|
GSM-10T |
|
Wire Capacity |
|
Ø 0.1-1.0 mm |
|
Strip Capacity |
|
0.04-0.5x10 mm |
|
Hardness of Wire (Carbon) |
|
80C |
|
Axes |
|
Mechanical Type |
|
Max. Feed length |
|
150 mm |
|
Max. Production rate |
|
250 RPM |
|
Slide check sensor |
|
Optional |
|
Motor capacity |
Press |
2.2 kw |
|
Cam |
||
|
Feed |
||
|
Dimension |
|
130x90x180 cm |
|
Weight |
|
700 kgs |
The specifications are subject to change without notice.
