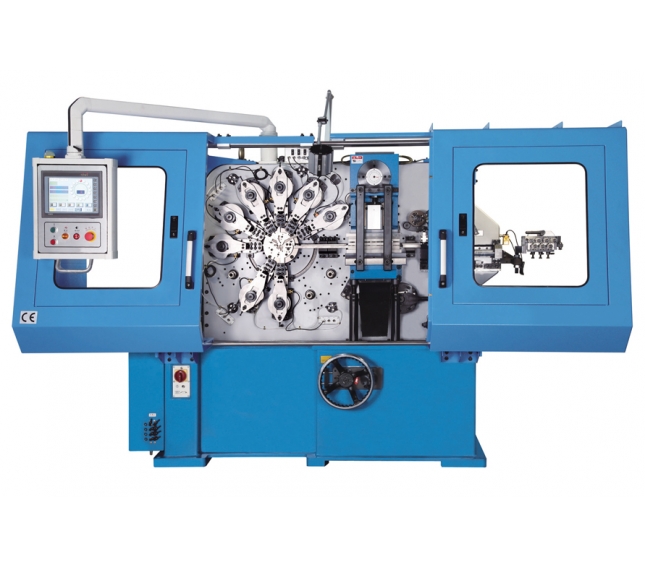

GSM-36T

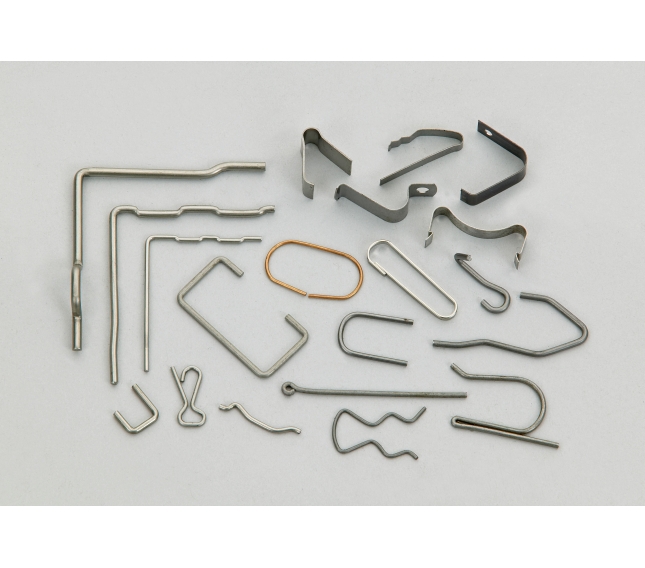

● Ideal for wire and strip
● Flexible slide position
● Fast production rate
● Precise and stable
● Continuos feeding, bending and stamping
● Auto lubrication
● Safety detection for material disconnection and jam
● Rear cam unit
● Optional safty cover
|
Model |
|
GSM-36T |
|
Wire Capacity |
|
Ø 0.6-3.2 mm |
|
Strip Capacity |
|
0.3-1.5x30 mm |
|
Hardness of Wire (Carbon) |
|
80C |
|
Axes |
|
Mechanical Type |
|
Max. Feed length |
|
200 mm |
|
Max. Production rate |
|
300 RPM |
|
Slide check sensor |
|
Optional |
|
Punching Pressure |
|
15T |
|
Motor capacity |
Press |
5.0 kw |
|
Cam |
||
|
Feed |
||
|
Dimension |
|
210x99x190 cm |
|
Weight |
|
2500 kgs |
The specifications are subject to change without notice.
