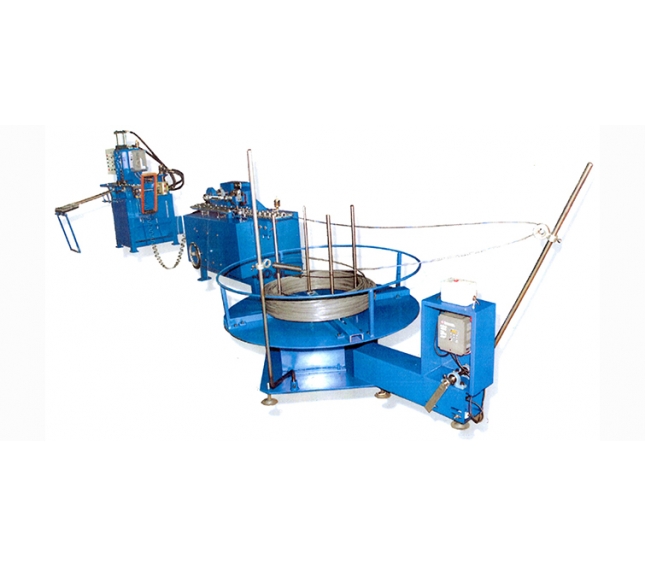

S Type Spring Production LIne (φ2.5~5.0mm)
● Mechanical type

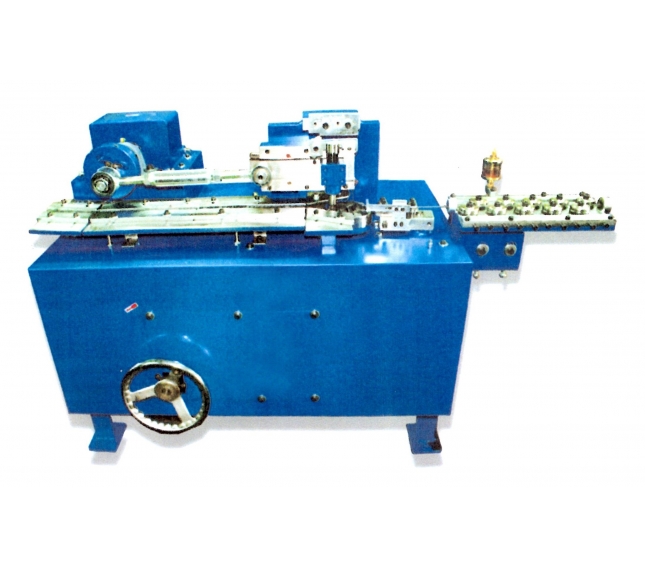

● With GZF-50 S type Spring Former

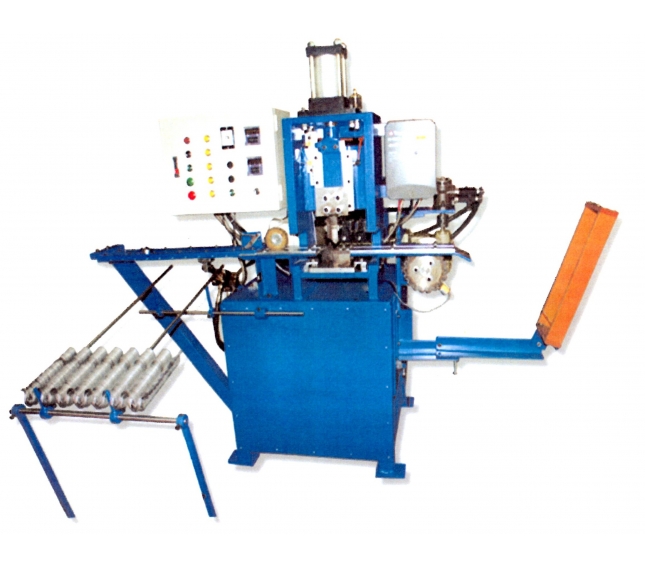

● With GHS-50 Hydraulic Stamping Machine
● With 1000kgs Payoff
● GHS-50 cutting mold shall be designed as per customer's S type spring drawing.
● Easy to operate and maintain.
|
Model |
GZF-50 |
|
Wire diameter |
Ø2.5-5.0 mm |
|
Spring U Width |
15~50mm |
|
Spring U height |
35 ~ 70mm |
|
Motor capacity |
5 Hp |
|
Machine dimension |
167cm x 110cm x 110cm |
|
Machine weight |
750 kgs |
|
Power |
220V; 3P ; 50/60 HZ |
|
Model |
GHS-50 |
|
Wire diameter |
Ø2.5-5.0 mm |
|
Motor capacity |
5 Hp |
|
Machine dimension |
160cm x 90cm x 200cm |
|
Machine weight |
900 kgs |
The specifications are subject to change without notice.
