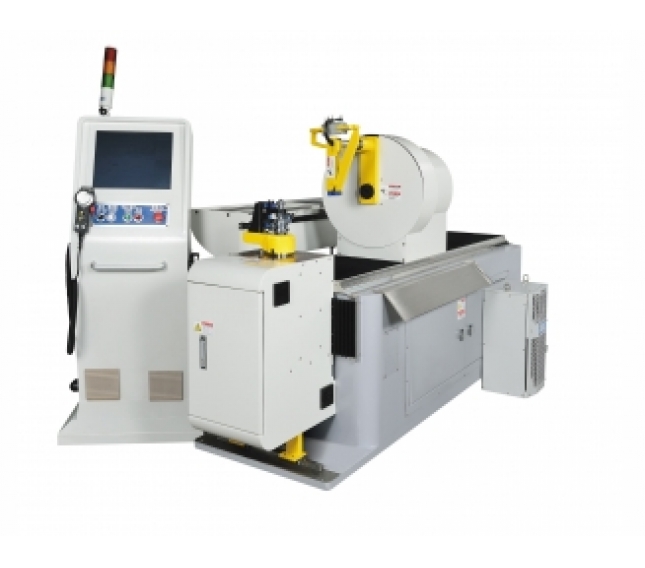

TWB Series Tube and Wire Bender (φ2.0~12.0mm)
● Standard feed length: 1200 mm (can be customized & lengthened according to customer requirements)
● Servo axis number: 6~8 axes, machining accuracy: ± 0.05 °
● Self-diagnostic function, warning alarm for irregularities
● Power loss safeguard & dual hard disk synchronized data backup to prevent data loss
● Reversible mode, left & right bending
● Performs stretch bending or roll bending processing
● Servo driven, simple tube processing procedure
● Touch screen controls, clean operating environment, safe, simple, multi-language interface
● Industrial PC (IPC), touch-screen controls, large memory capacity. Network data transmission & online troubleshooting functions
|
Model |
TWB-670 |
TWB-680 |
TWB-880 |
TWB-6100 |
TWB-8100 |
TWB-6120 |
TWB-8120 |
|
Metal wire |
7mm |
8mm |
8mm |
10mm |
10mm |
12mm |
12mm |
|
Stainless Steel (SUS304) |
6mm |
7mm |
7mm |
8mm |
8mm |
10mm |
10mm |
|
Low carbon steel tube |
D10*1.5T |
D12.7*1.5T |
D12.7*1.5T |
D12.7*3.0T |
D12.7*3.0T |
D12.7*5.0T |
D12.7*5.0T |
|
Max Feed Length |
1200mm/ Can be customized & lengthen according to customer requirements |
||||||
|
Max bend Angle |
+/- 180° |
||||||
|
Max Bend Radius |
R40mm |
R40mm |
R60mm |
R60mm |
R60mm |
R65mm |
R65mm |
|
Max Number of Bends |
200 |
||||||
|
Axes |
6-Axes |
6-Axes |
8-Axes |
6-Axes |
8-Axes |
6-Axes |
8-Axes |
|
Max Rotation Angle |
+/- 360° |
||||||
|
Dimensions (mm) |
2400 x 1100 x 1500 |
||||||
|
Power |
380V, 3 phase |
||||||
|
Weight(kgs) |
1300 |
1700 |
1700 |
1700 |
1700 |
1750 |
1750 |
