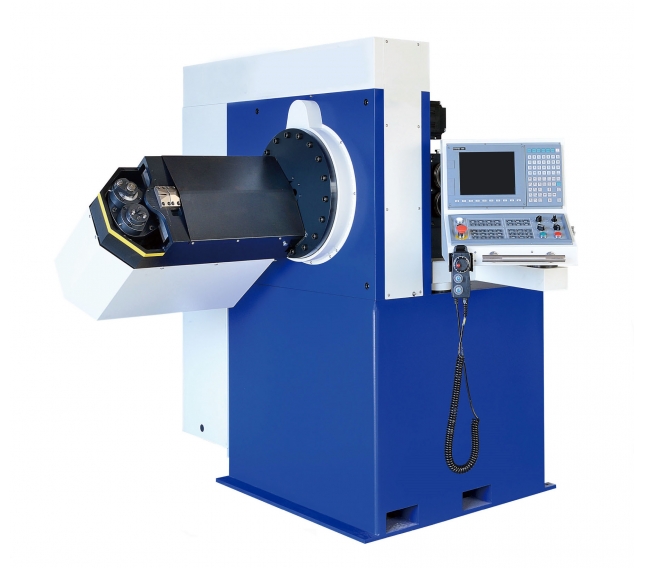

WB-480 and WB-4100 are 4 axes CNC wire bender, can make different kinds of wire forms automatically.
Wire range is 4.0-8.0 mm and 4.0-10.0 mm for low carbon steel wire.
Easy setup by 360 degrees rotary head, and 2 spinner heads.
|
Model |
WB-480 (3D) |
WB-4120 (3D) |
|
|
Wire Capacity |
4.0-8.0mm for low carbon steel 1006 4.0-6.0mm for high carbon steel wire |
4.0-12.0mm for SAE 1006 wire 4.0-8.0mm for high carbon steel wire |
|
|
Axis |
Standard 4 axes |
Standard 4 axes |
|
|
Max. Working range |
700mm * 700mm * 700mm |
700mm * 700mm * 700mm |
|
|
Feeding |
Max. Feeding speed |
70M / min |
70M / min |
|
Max. Value |
+/- 99999999 |
+/- 99999999 |
|
|
Spinner |
Max. Rotation Angle |
360° |
360° |
|
Power |
220V , 3 Phases |
220V , 3 Phases |
|
|
Weight |
2500 KGS |
2500 KGS |
|
|
Dimensions |
210*253*187 cm |
210*253*187 cm |
|
The specifications are subject to change without notice.
